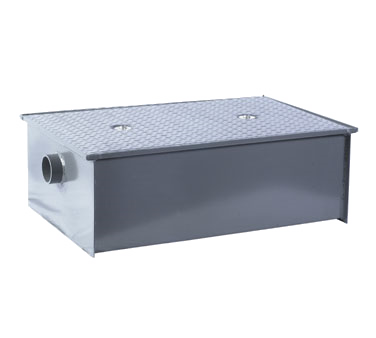

Dormont Grease Interceptor - WD-20-L

DormontSKU: WD-20-L


Shipping calculated at checkout


**Free Shipping**

Grease traps like the Dormont WD-20-L are often used with cooking or prep sinks, pot sinks, and commercial dishwashers in various types of commercial food service operations. A flow restrictor on the inlet side of the interceptor slows incoming effluent and redirects it through baffling inside the grease trap. As the flow is gradually slowed, lighter than water substances accumulate inside the trap above the static water line.

The Dormont WD-20-L low rough-in Grease Interceptor features a body constructed of 11-gauge cold rolled steel with an oven-cured, acid-resistant baked gray epoxy coating. Other standard features include a solid steel cover with gasket, a removable baffle assembly, a deep seal trap with clean-out, no hub connections, and an external cast iron flow control fitting (flow restrictor).

The Dormont WD-20-L low profile grease trap has a grease capacity of 40 lbs., and a flow rate of 20 GPM. It is PDI (Plumbing & Drainage Institute) Certified, and meets the industry and PDI Standard PDI-G101 for separation efficiency. This standard specifies that the grease trap must maintain 90% separation efficiency up to its rated grease retention capacity.

Overall Dimensions:34 7/8";L x 22 7/8";W x 11 3/4";H Flow Rate: 20 GPM (Gallons Per Minute) Grease Capacity: 40 lbs. Inlet & Outlet Size: 3";
